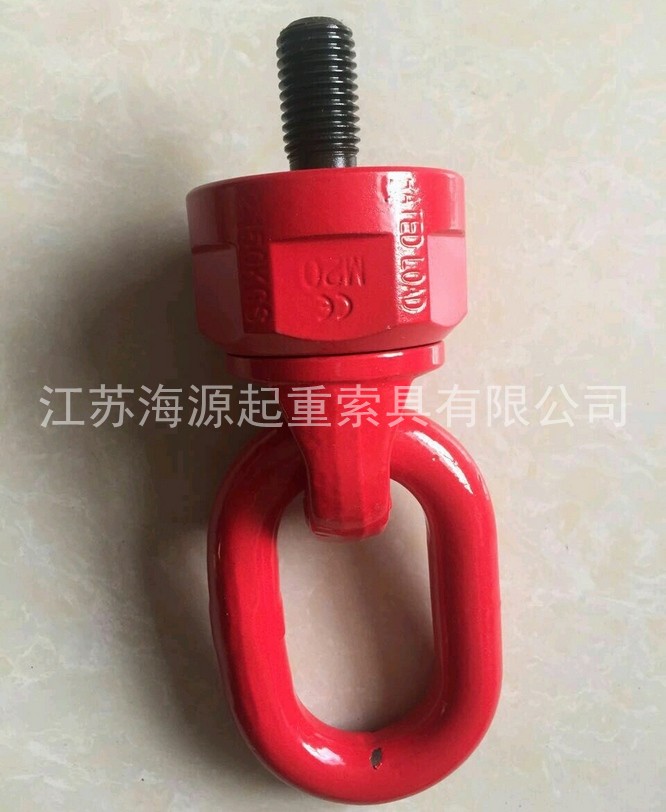

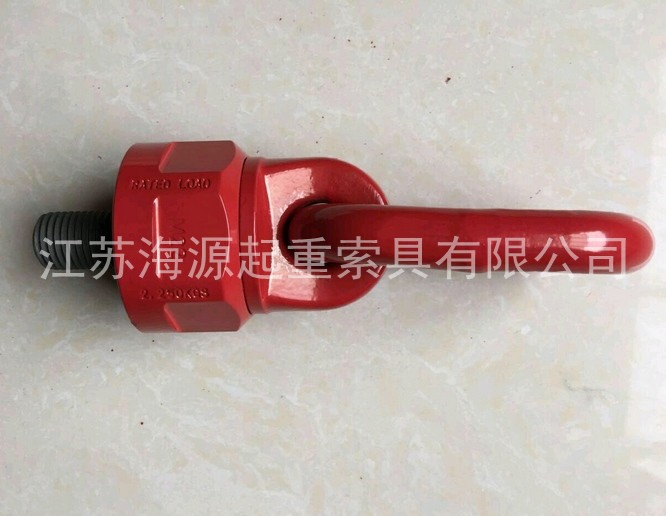

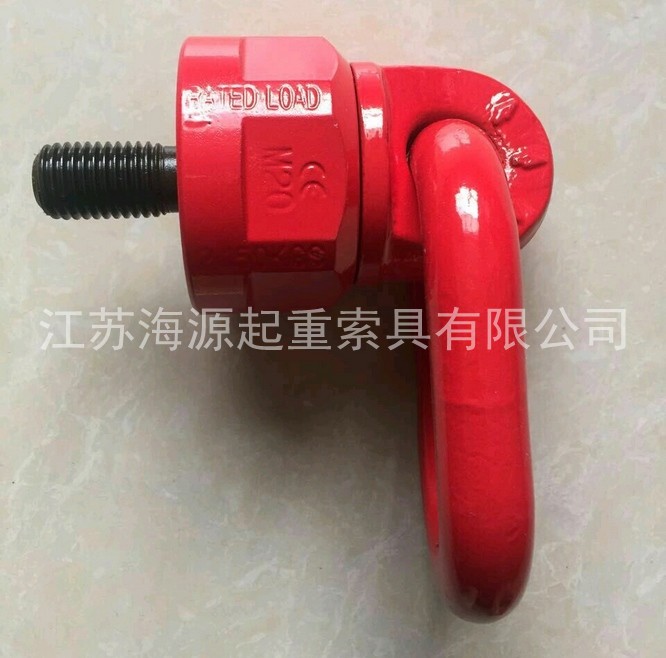

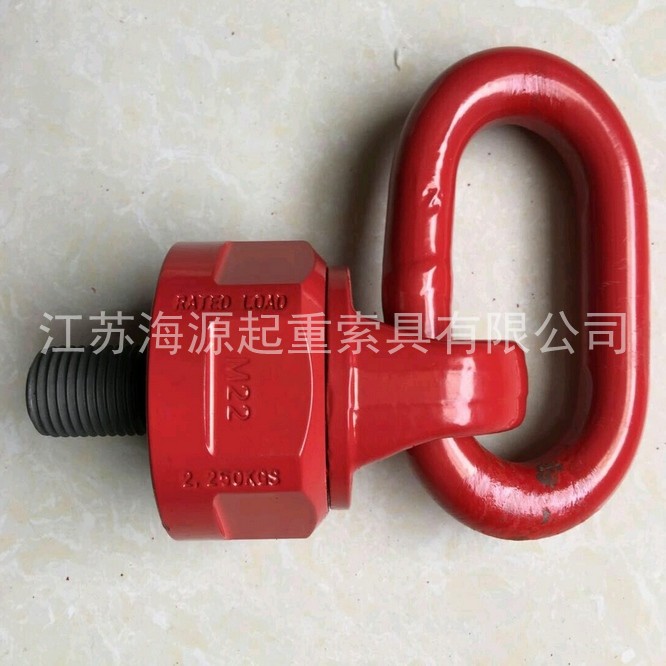

万向吊环_旋转吊环
|

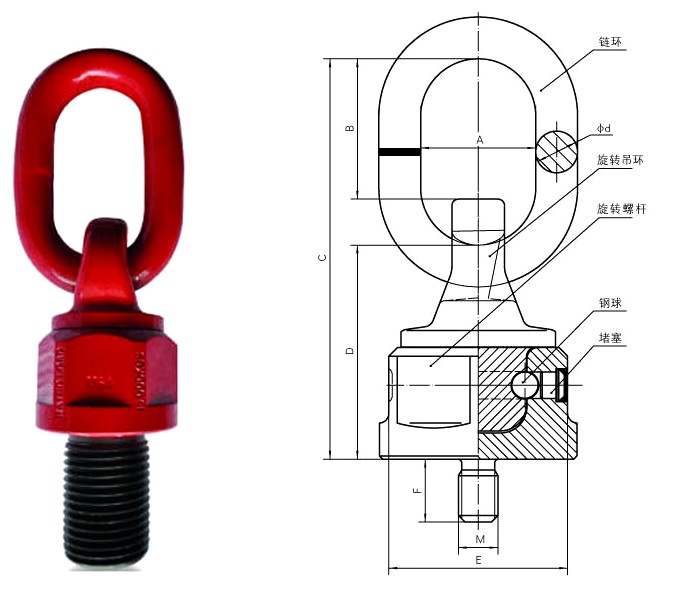

公制型号 |
载荷 WLL(T) |
单位（mm） |
重量（kg） |
||||||
|
A |
B |
C |
D |
E |
d |
F |
|||
|
M8X1.25-6g |
0.40 |
27 |
39 |
85 |
38 |
33.3 |
7.9 |
12 |
0.27 |
|
M10X1.5-6g |
0.50 |
27 |
39 |
85 |
38 |
33.3 |
7.9 |
19 |
0.27 |
|
M12X1.75-6g |
1.05 |
35 |
58 |
135 |
65 |
54.3 |
12.7 |
19.1 |
1.17 |
|
M14X2.0-6g |
1.15 |
35 |
58 |
135 |
65 |
54.3 |
12.7 |
31.8 |
1.18 |
|
M16X2.0-6g |
1.90 |
35 |
58 |
135 |
65 |
54.3 |
12.7 |
31.8 |
1.20 |
|
M20X2.5-6g |
2.15 |
40 |
67 |
160 |
75.5 |
64.3 |
19.1 |
38.1 |
2.21 |
|
M22X2.5-6g |
2.25 |
40 |
67 |
160 |
75.5 |
64.3 |
19.1 |
38.1 |
2.23 |
|
M24X3.0-6g |
4.20 |
40 |
67 |
160 |
75.5 |
64.3 |
19.1 |
38.1 |
2.24 |
|
M30X3.5-6g |
5.00 |
50.8 |
95 |
205 |
90 |
74 |
22.2 |
50 |
3.70 |
|
M33X3.5-6g |
7.00 |
50.8 |
95 |
205 |
90 |
74 |
22.2 |
50 |
3.86 |
|
M36X4.0-6g |
8.00 |
50.8 |
95 |
205 |
90 |
74 |
22.2 |
54 |
3.86 |
|
M39X4.0-6g |
8.00 |
50.8 |
95 |
205 |
90 |
74 |
22.2 |
58 |
3.97 |
|
M42X4.5-6g |
10.00 |
63 |
108 |
230 |
100 |
85 |
25 |
63 |
5.83 |
|
M45X4.5-6g |
10.00 |
63 |
108 |
230 |
100 |
85 |
25 |
68 |
5.85 |
|
M48X5.0-6g |
10.00 |
63 |
108 |
230 |
100 |
85 |
25 |
68 |
6.08 |
|
M52X5.0-6g |
15.00 |
70 |
120 |
278 |
132 |
95 |
32 |
84 |
10.00 |
|
M56X5.5-6g |
15.00 |
70 |
120 |
278 |
132 |
95 |
32 |
84 |
10.15 |
|
M60X5.5-6g |
15.00 |
70 |
120 |
278 |
132 |
95 |
32 |
90 |
10.50 |
|
M64X6.0-6g |
15.00 |
70 |
120 |
278 |
132 |
95 |
32 |
95 |
10.80 |
|
M72X6.0-6g |
25.00 |
80 |
125 |
331 |
166 |
130 |
40 |
108 |
22.80 |
|
M90X6.0-6g |
35.00 |
80 |
125 |
331 |
166 |
130 |
40 |
135 |
31.00 |
万向吊环螺栓规格多，应用范围广，使用客户多。该结构吊环通过底座六边形的设计，可便捷的将吊点紧固安装在被吊物体各表面。
